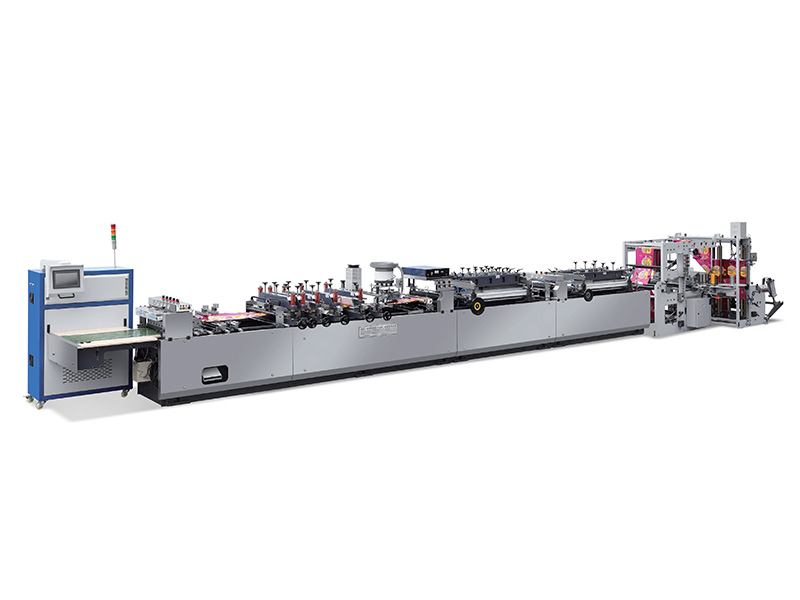

GX-ZUD-A High-speed [Three-servo] Three-side Sealing Zipper Stending Bag-making Machine

This machine is suitable for producing two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material. With such characteristics as easy operation, smooth products, beautiful appearance, high-strength thermal edge sealing and high bag making speed, it is a kind of ideal equipment for packing and making pouches.

Inquire Now NEXT PRODUCT

PERFORMANCE AND CHARACTERISTICS

1. Whole machine controlled by central PLC control system with man-machine. More stable performance,easy for operation and maintenance. Chinese and English interface language can be shifted easily.

2. Constant auto-tension control for urwinding, LPC edge alignment, AC inverter constant speed auto material feeding.

3. Imported three servo-motor material dragging control system.

4. Main motor for up-down sealing and pressing equipped with inverter.

5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.

6. Equipped with Pneumatic multi-function duto punching device, trim cutting and auto rewinding and static eliminator.

7. Temperature adjustment range: 0~300℃

8. Counter: quantity, batch accumulation, pre-set available.

9. Operation Method: by length fixation control and/or by photocell tracking control.

10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.

11. Material Skip Feeding: one to six times available.

12. Batch Conveying Function available, the quantity of batch can be preset.

Main Technical Variables

Type	GX-ZUD -A400	GX-ZUD-A600
Max. Diameter of Roll Material	φ600mm	φ600mm
Max. Width of Roll Material	850mm	1250mm
Max. Width for Accessorial Material	160mm	160mm
Max.Speed	150pieces/mm	150pieces/mm
Max. Mechanical Speed	Approx 35m/min	Approx 35m/min
Max. Bag-making Width	600mm	600mm
Bag-making Length	50-2400mm	50-2400mm
Total Power	55Kw	65Kw
Weight of Machine	6500kg	7500kg
Overall Dimension	L13000×W2300×H1870mm	L13000×W2500×H1870mm
